Mini Phono Preamp - High-Quality Turntable Preamplifier for Vinyl Records | Perfect for Home Audio & DJ Setups

Product Description

THE MUSIC HALL MINI IS A SOLID STATE MOVING MAGNET PHONO PREAMP FOR USE WITH MOVING MAGNET AND HIGH OUTPUT MOVING COIL CARTRIDGES. THE MINI IS DESIGNED TO AMPLIFY AN RIAA EQUALIZED PHONO SIGNAL TO A HIGH LEVEL SIGNAL. IT’S CHEAP, CHEERFUL, AND BUILT IN THE USA.

feature list

• RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
• steel chassis

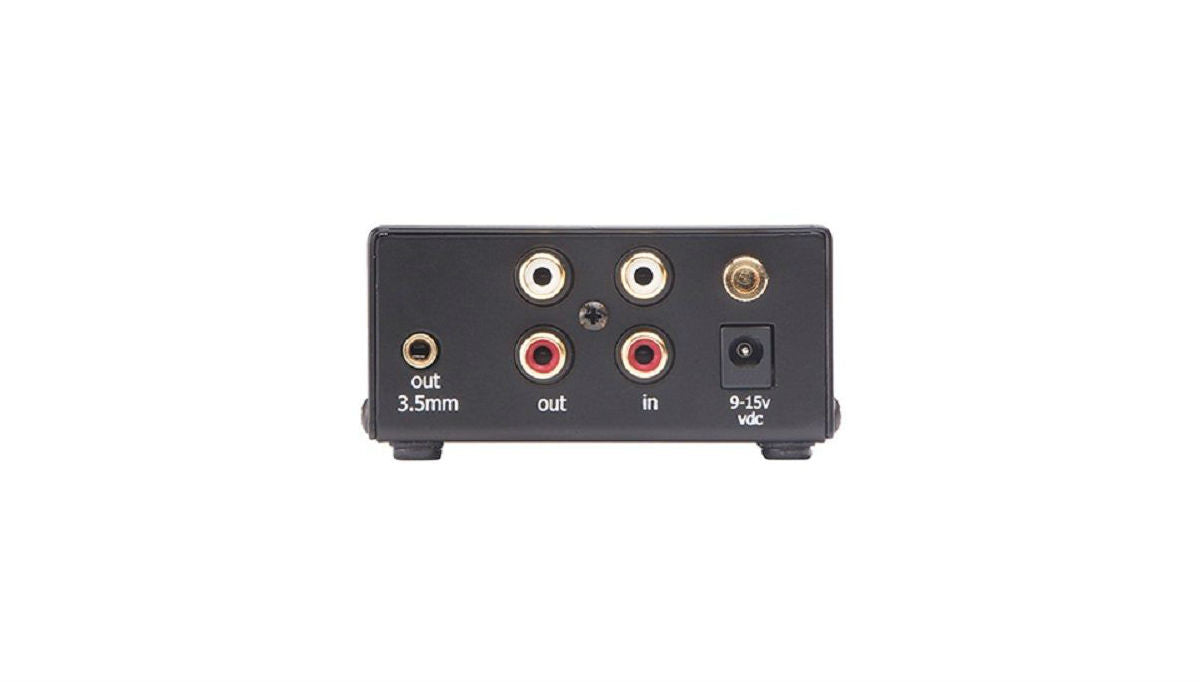

• i/o connectors: rca, 3.5mm trs stereo
• input sensitivity: 35 dB gain @1kHz, 47k Ohms Input Z
• input capacitance: 5pf + cable capacitance
• input impedance: 50k Ohms
• output impedance: 1 K Ohms
• max output level: >10dB @ 1kHz at .1% dist.
• s/n ratio: >80 dB unweighted
• thd .02% @ 1KHz
• pwr: 9 – 15 VDC
• indicator: 1 power LED

product specifications

• w3.25 x h1.5 x d2 in.
• 1.5 lbs. pkg.
