8.0'' In-Wall / Ceiling Speaker 100V - High-Quality Audio for Home Theater, Office, and Commercial Spaces

Product Description

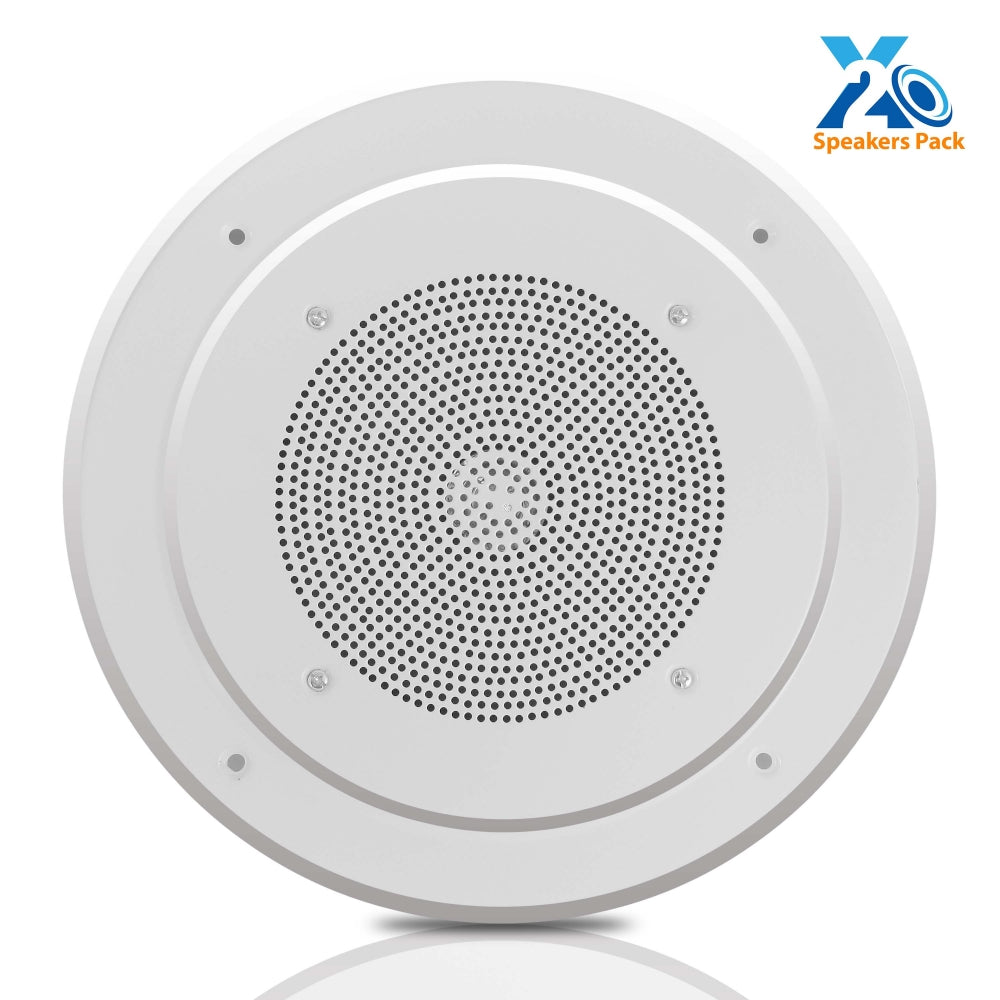

The Pyle In-Wall / Ceiling Commercial PA Intercom Speaker features built-in 100V transformer. Rugged and durable speaker housing style includes high-temperature aluminum voice coil and treated speaker cone for reliable sound delivery. The transformer ceiling speaker allows for tapping or "constant voltage" connection -- making the system suitable with distributed multi-zone speakers for PA public address and background music playback. Perfect for custom commercial speaker installations in areas including office, business, school and warehouse applications. Enjoy convenient flush mount ceiling speaker ability with the Pyle Commercial PA Intercom 100V Tap Line Speaker System.

• 8'' Speaker - 8 Ohm Impedance - Sold as a Pair
• 1'' High Temperature Voice Coil - 100V Transformer Tapping At 10W
• 1.5'' Tweeter Cup - SPL: 89dB
• 200 Watts Peak power - Cut-Out Dimensions: 8'' Diameter x 3.15'' Depth
• Frequency Response: 60Hz-16kHz - Overall Dimensions: 12.8'' Diameter x 3.15'' Depth

DETAILS

Features:

• Single PA Intercom Commercial Speaker
• In-Wall / Ceiling Flush Mount
• Built-in 100V Transformer Tap Line
• Constant Voltage Speaker Style
• Rugged & Durable Speaker Grill
• High Temperature Voice Coil & Tweeter Cup
• Designed for PA Public Address / Background Music Playback
• Multiple Loudspeaker / Multi-Zone Distributed Sound Connection Compatible
• Used for Commercial Applications: Office, Business, School, Warehouse

Technical Specs:

• Power Output: 200 Watt MAX
• Transformer Tapping: 100V @ 10 Watt
• Speaker Size: 8.0’’ -inch
• Tweeter Cup: 1.5’’ -inch
• Voice Coil: 1.0’’ -inch
• Impedance: 8 Ohm
• Frequency Response: 60Hz-16kHz
• SPL: 89 dB
• Cut-Out Diameter: 8.0’’ -inches
• Mounting Depth: 3.15’’ -inches
• Total Speaker Size (W x H x D): 12.8’’ x 12.8’’ x 3.17’’ -inches
