HD Car Backup Camera and Rearview Mirror Display Kit - Easy Installation, Night Vision, Waterproof for Safe Parking & Reversing | Perfect for SUVs, Trucks, RVs & Daily Commute

Product Description

DescriptionThe Pyle PLCMDVR77 rear view backup parking assist camera adds night vision and low light capability when on the road. The camera outputs a clear, colorful picture along with distance scale lines to help you drive safer and to get into those tight parking spots. System includes all the necessary cables and wiring for installation along with a license plate frame mount. Connect it your monitor display screen and the marine grade construction reveals any obstacles, rain or shine. Built-in night vision illumination for dark environments and when visibility is limited with G-sensor auto-save recording during collision via 32gn memory card slot. Drive safer and smarter with the Pyle PLCMDVR77 night vision license plate frame parking assist camera.

• Features: - Built-in G-Sensor Auto-save Recording during Collision - Universal Dashboard / Windshield Mountable - Power & Wiring Harness - Effective Pixel: 656 x 492Pixels - Camera Dimensions (W x H x D): 10.0" x 1.3" x 1.3" -inches
• Vehicle DVR Driving Video Recording System - Built-in Microphone for Audio Recording - *Designed to Replace Your Existing Rear-View Mirror Assembly What’s in the Box: - RCA Video Cable - Resolution: 420 TV Lines - Aspect Ratio: 16:9
• Rear-View Mirror Assembly with Built-in 7.4’’ -inch Display Screen - True Color Reproduction and Image Adjustment - Rearview Mirror Assembly - Camera Power Supply Cable, 3.2’ ft. Backup Camera: - Lens Angle: 170° Degree
• Camera + Camcorder: Snap Pictures or Record Video - Micro SD Memory Card Slot - DVR Dash Cam - Video System: PAL/NTSC Auto Switching - Marine Grade Rating: IP-69 - Weight: 0.72 lbs Technical Specs: - LCD Screen: 7.36’’ TFT LCD
• Night Vision Illumination - Easy File Saving & Sharing - Backup Camera - Image Sensor: 1/4'' Color CMD - Video Output: 1.0V PP-75 Ohm - Video System: PAL/NTSC Auto Switching - Monitor Resolution: 1280 x 420 Pixels - Brightness: 1000cd/m2

DETAILS

Features:

• Vehicle DVR Driving Video Recording System
• Rear-View Mirror Assembly with Built-in 7.4’’ -inch Display Screen
• Camera + Camcorder: Snap Pictures or Record Video
• Night Vision Illumination
• Built-in G-Sensor Auto-save Recording during Collision
• Built-in Microphone for Audio Recording
• True Color Reproduction and Image Adjustment
• Micro SD Memory Card Slot
• Easy File Saving & Sharing
• Universal Dashboard / Windshield Mountable
• *Designed to Replace Your Existing Rear-View Mirror Assembly

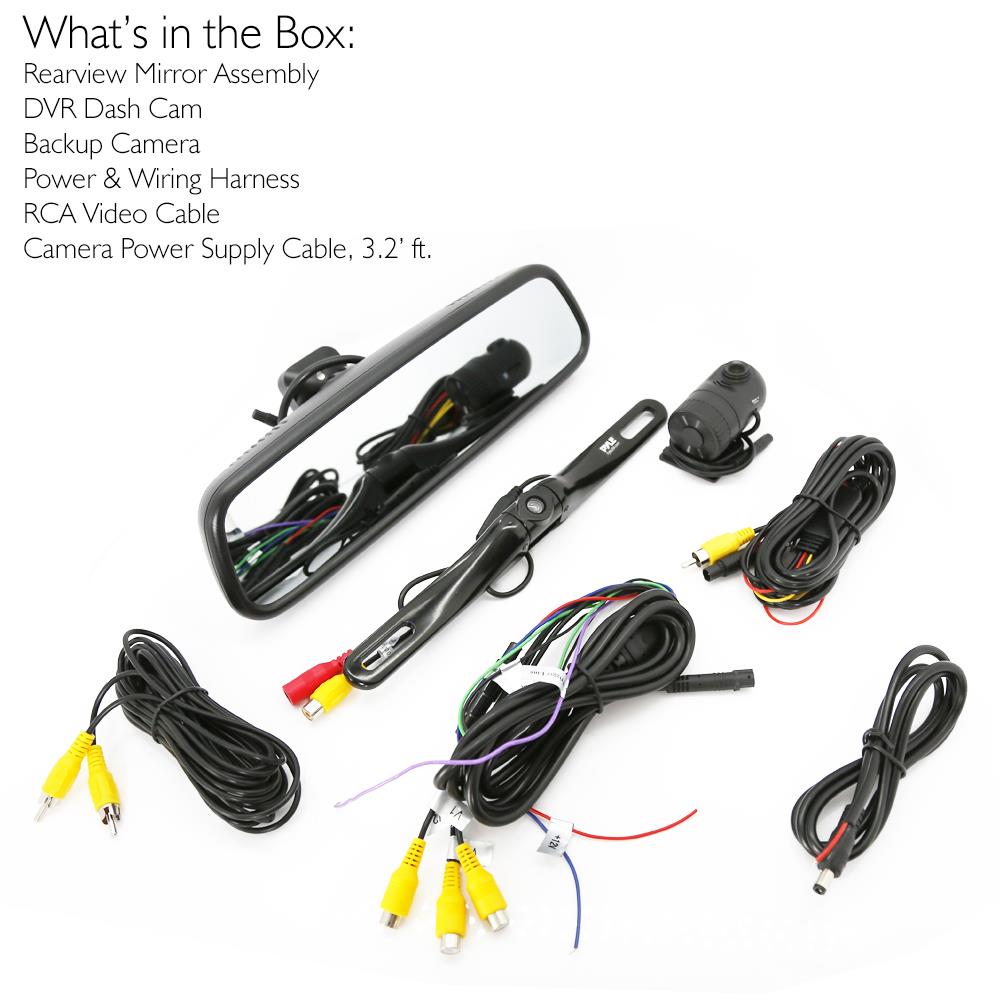

What’s in the Box:

• Rearview Mirror Assembly
• DVR Dash Cam
• Backup Camera
• Power & Wiring Harness
• RCA Video Cable
• Camera Power Supply Cable, 3.2’ ft.

Backup Camera:

• Video System: PAL/NTSC Auto Switching
• Image Sensor: 1/4'' Color CMD
• Effective Pixel: 656 x 492Pixels
• Resolution: 420 TV Lines
• Lens Angle: 170° Degree
• Marine Grade Rating: IP-69
• Video Output: 1.0V PP-75 Ohm
• Camera Dimensions (W x H x D): 10.0" x 1.3" x 1.3" -inches
• Weight: 0.72 lbs

Technical Specs:

• Video System: PAL/NTSC Auto Switching
• LCD Screen: 7.36’’ TFT LCD
• Monitor Resolution: 1280 x 420 Pixels
• Brightness: 1000cd/m2
• Aspect Ratio: 16:9
• Monitor And Camera Connector: RCA connector
• AV Inputs: 3CH- AV1- Left Camera, AV2-Back Camera, AV3-Right Camera
• Micro SD Card Support: Up to 32GB, Not Included
• Power Consumption: 7W (Working) 0.5W (Standby)
• Power Supply: DC 12-24V
• Monitor Dimensions (L x W x H ): 10.0" x 1.3" x 1.26" -inches
